Project information
- Category: Advanced CAD Lab
- Faculty: Mechanical Engineering
- Project date: Oct 2021 - March 2022

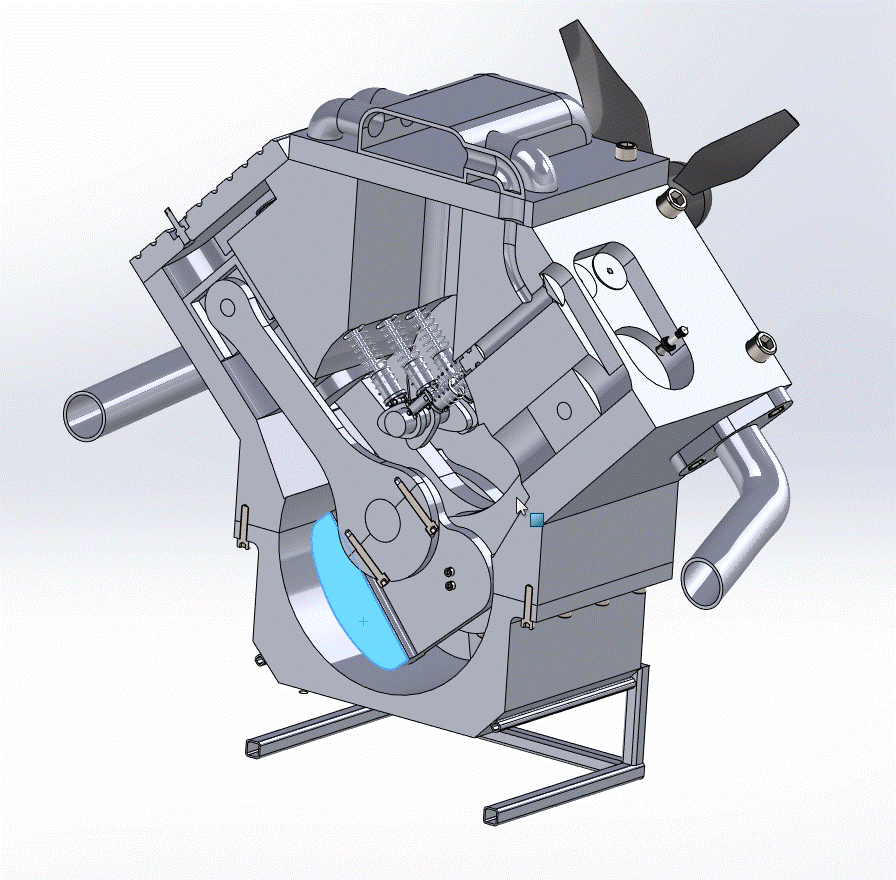

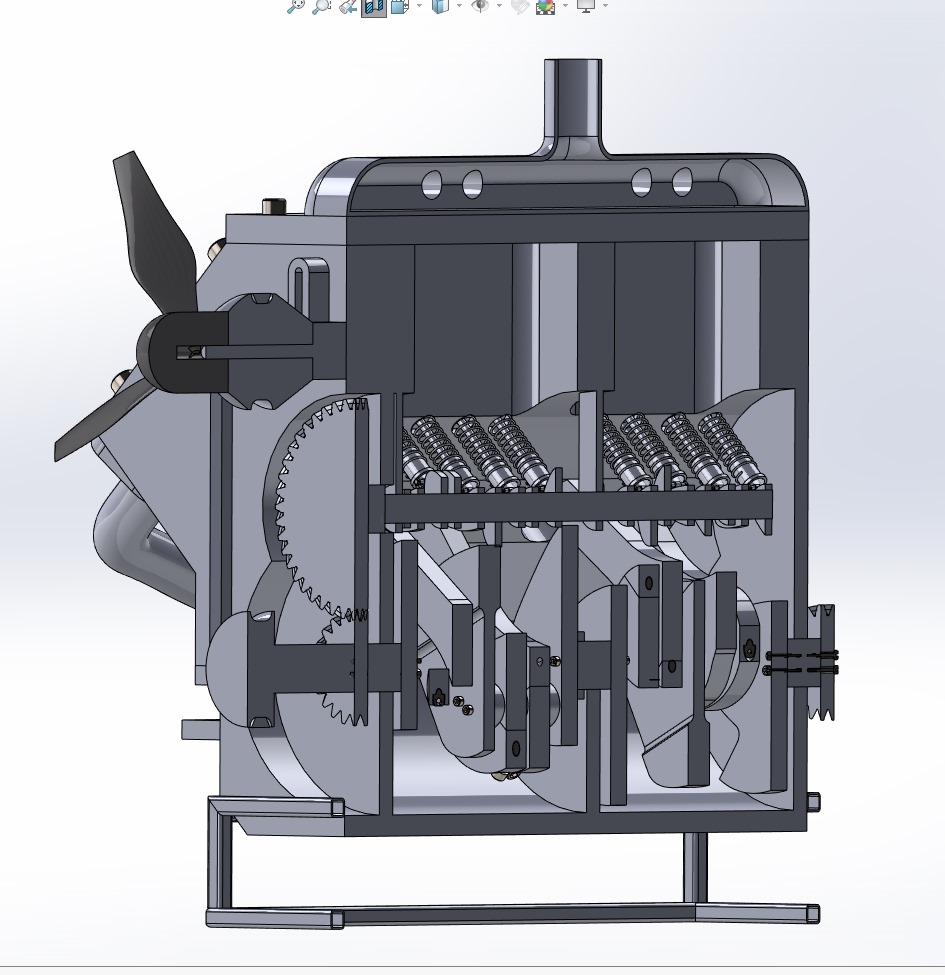

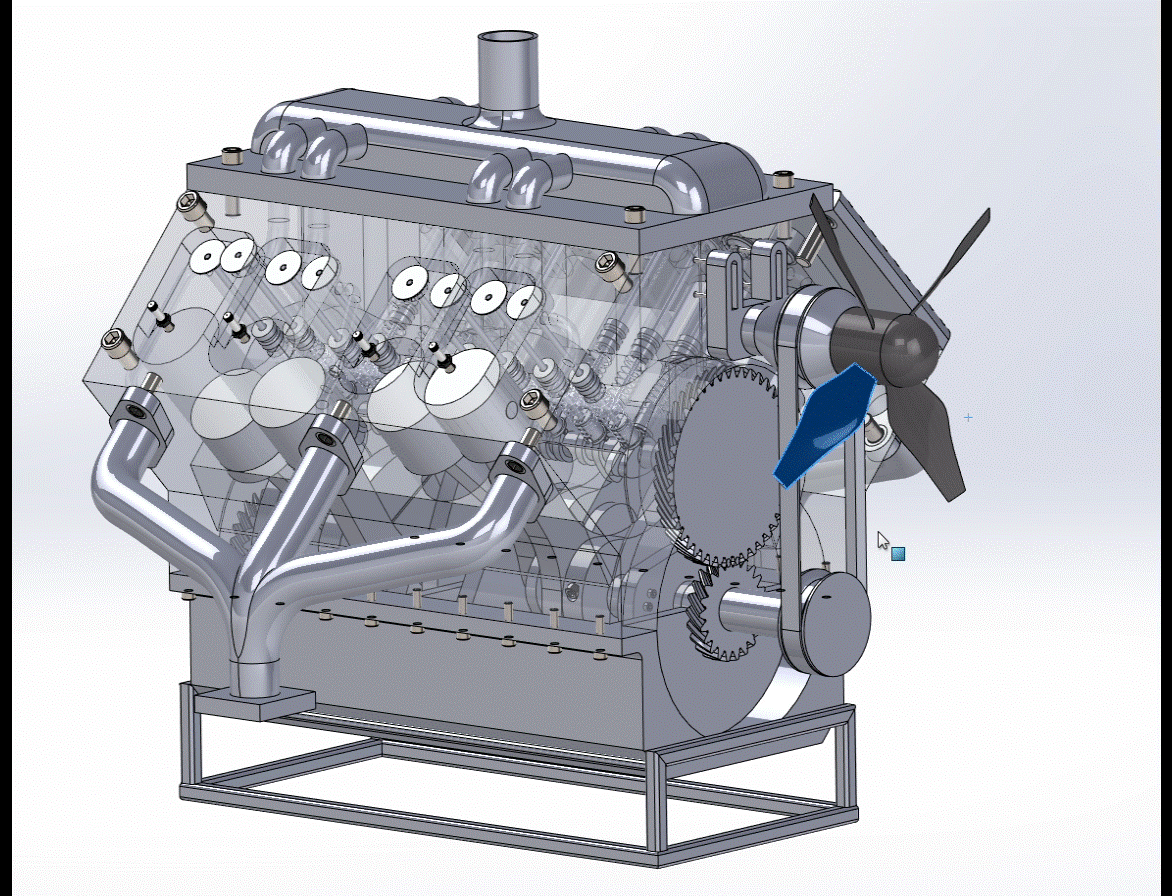

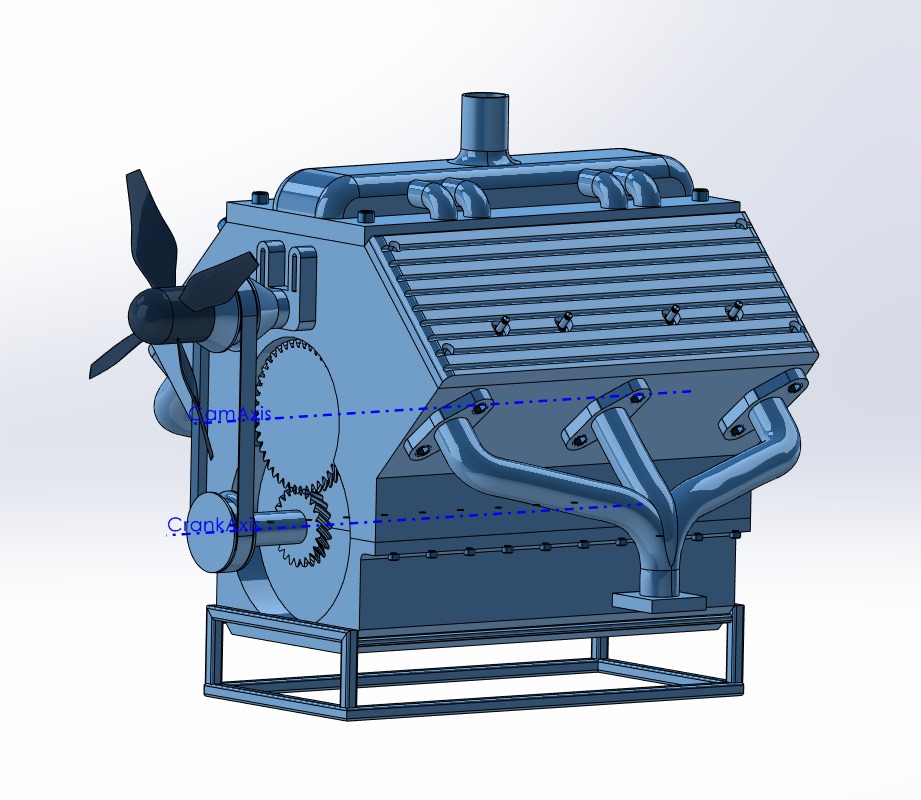

V8 Engine Model
Learned advanced methods in Solidworks design like sheet metal, weldments, smart components and more. Designed with a partner this engine based on a manual of a Ford Flathead V8.
o Full motion with pistons, belts, cranks, and valves
o 311 parts in the complete assembly
